Field Isosurface

Visualization

A 3D boundary surface that traces every point in space where the magnetic field reaches a chosen strength. The 3D field view stacks several of these surfaces inside one another, each one marking where the field stays at or above a set fraction of the surface peak, with a 5 Gauss shell as the practical outer edge. The outer shells are the largest and show how far the field reaches. The inner shells are smaller and show where the field is strongest, close to the coil. Technically, an isosurface is the set of points where the field magnitude equals the threshold value, and for a rotationally symmetric coil it is the matching side-view line revolved a full turn around the coil's axis.

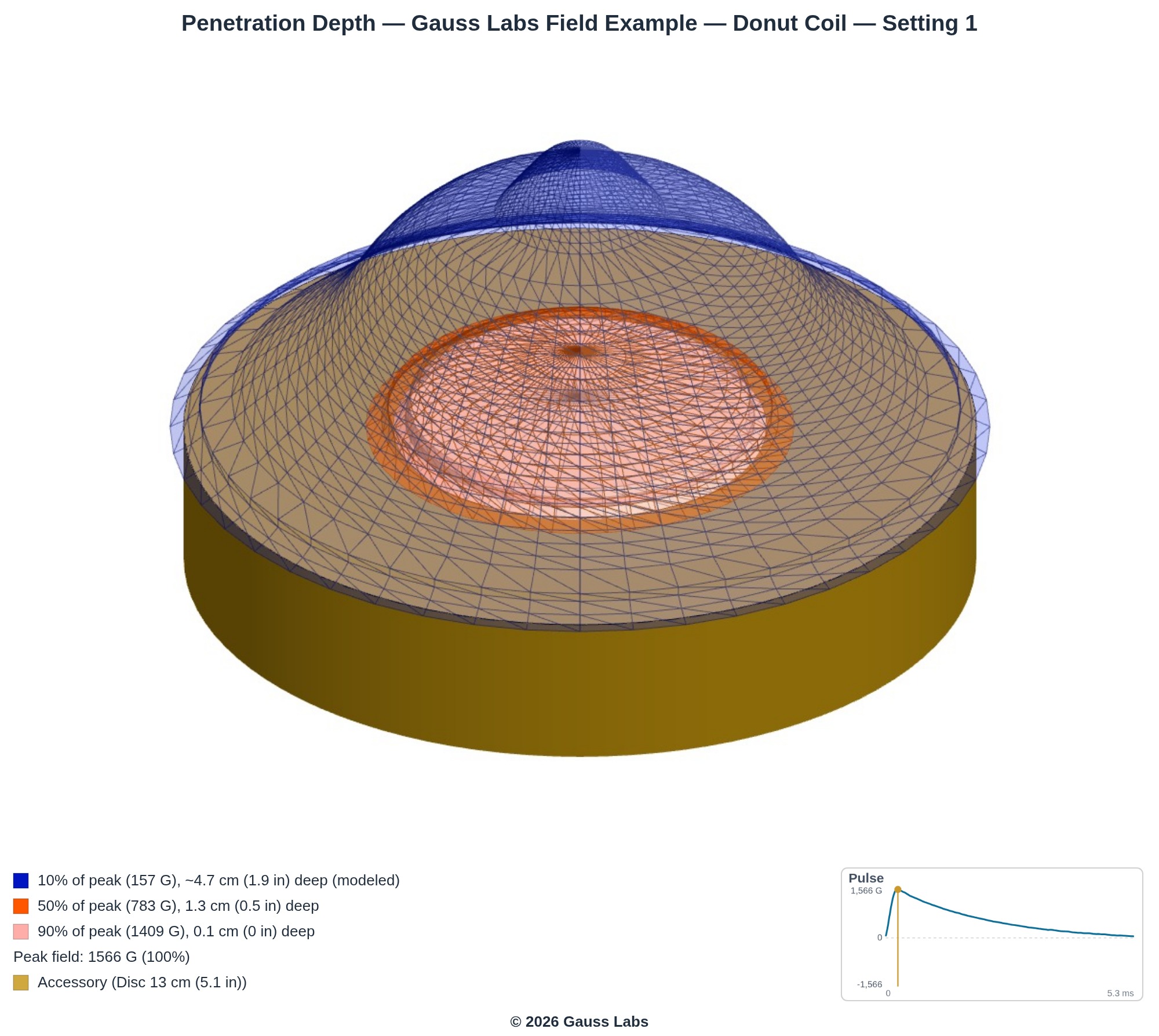

A real 3D Field Volume render from a Gauss Labs report: nested isosurface shells above a disc accessory, the translucent outer shell marking where the field holds 10 percent of its peak and the solid inner shell where it holds 50 percent, over the gold accessory footprint. — The field around a coil fills a three-dimensional region. This is a real render from a Gauss Labs report, showing that region as nested isosurface shells revolved around the coil axis above the accessory. Each shell is the boundary where the field holds a set fraction of its peak: the translucent outer shell marks 10 percent of peak, the reach edge, and the solid inner shell marks 50 percent, closer to the accessory where the field is strongest. The shell height shows how deep the field reaches and its width how far it spreads.
